Pipe Connection Solutions

ROMOLD pre-benched manhole chambers are developed for fast, simple and leak free connection with plain wall PVC pipes conforming to AS/NZS 1260 and AS/NZS 1254.
Bases are available for the following pipe sizes:

Pipe Size Mean Outside Diameter
DN150 160
DN175 200
DN225 250
DN300 315
DN375 400
DN475* 500

* Base solutions for DN475 pipe are available on special request.

PP and PE plain wall pipes conforming to AS/NZS 5065 are also appropriate for use directly with the DN1000 base socket design.

Bases are available for the following pipe sizes:

Pipe Size Mean Outside Diameter
OD160 160
OD200 200
OD250 250
OD315 315
OD400 400
OD500* 500

* Base solutions for OD500 pipe are available on special request.

PVC Pipe Connection

Connection to other pipe materials

Connection to other pipe materials (e.g. earthenware, concrete or corrugated pipes) are connected using standard adapters.

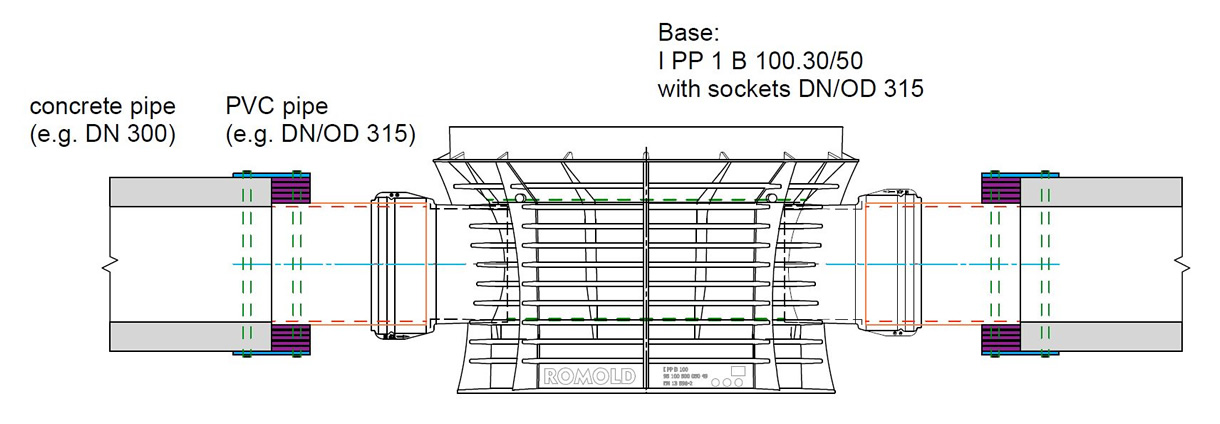

Concrete Pipe Connection

Electrofusion Connection to PE Pipe

Electrofusion coupling

Special bases for electrofusion connection to PE pipe are available upon request.
